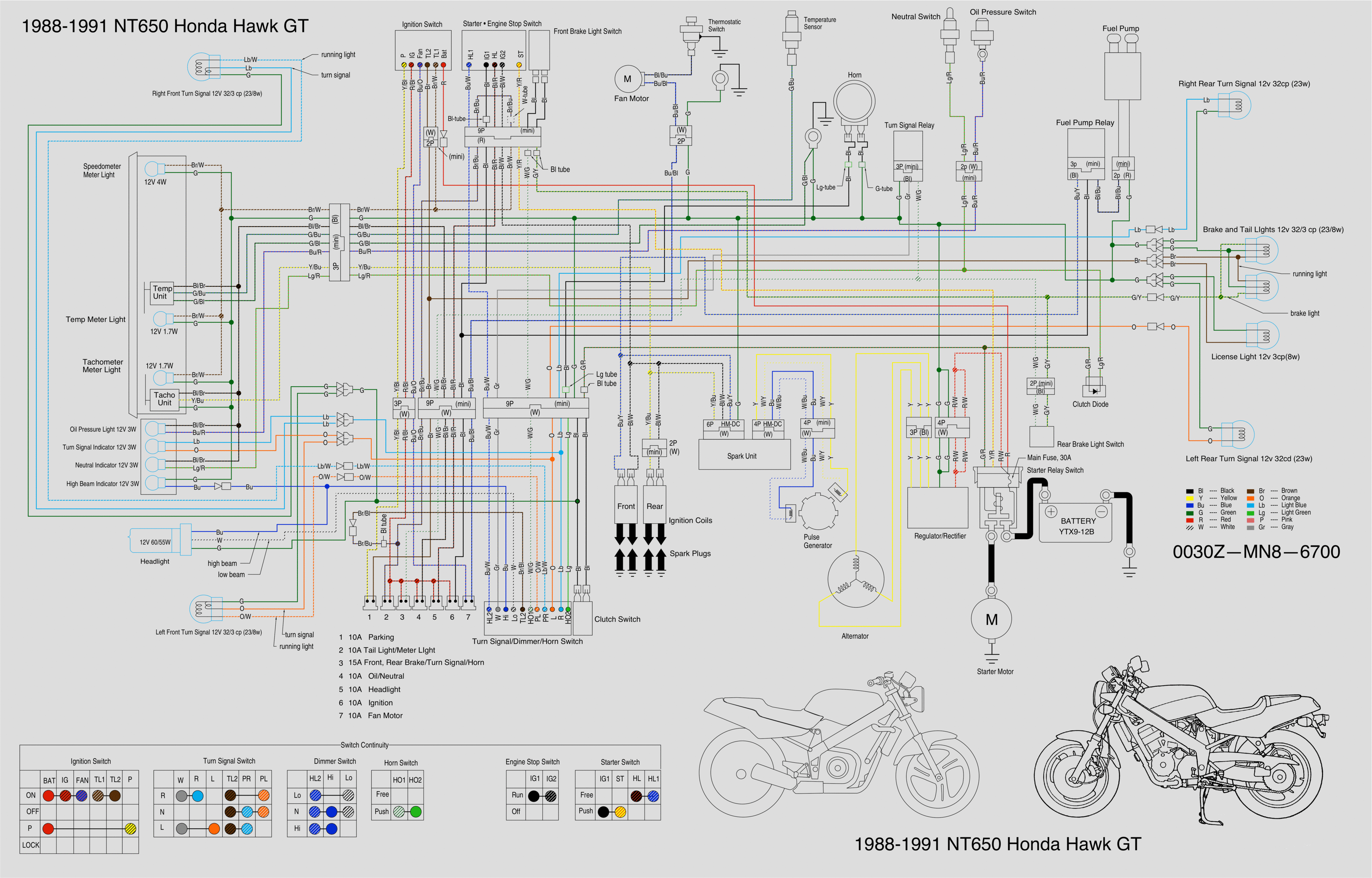

See the bottom of the page for corrections/errors that have been made to this diagram.
Errors/corrections:
- The Thermostatic Switch and Temperature Sensor
are labled backwards in the paper manual, and have been fixed here.
- The White w/ Green from HO1 and fuse #3 are not connected in the
original, but they should be. I’ve fixed it here.
